Shaped Wire in Duplex Steel | Nickel | Hastelloy & More

Discover our diverse range of Shaped Wire products, crafted from high-quality materials including Duplex Steel, Nickel Alloys, and Hastelloy.

shape wire | profile wire

CWI manufactures profile wire in Stainless Steels, Duplex steels, Nickel Alloys, Copper, Brass, and some carbon steels (profile only).  The profile wire sizes we offer are: 1.25mm² to 150mm² (0.049”² to 5.90”²) CSA (Cross Sectional Area).

Additionally, our profiles are manufactured on specialist equipment designed and built in-house with each line having in-line laser measuring – guaranteeing dimensional accuracy. Our tooling on-site capabilities not only ensure consistency, but also offers our customers the opportunity to develop complex or demanding requirements. Learn more below!

Shaped Wire in Duplex Steel | Nickel | Hastelloy | & More!

Profiles Offered

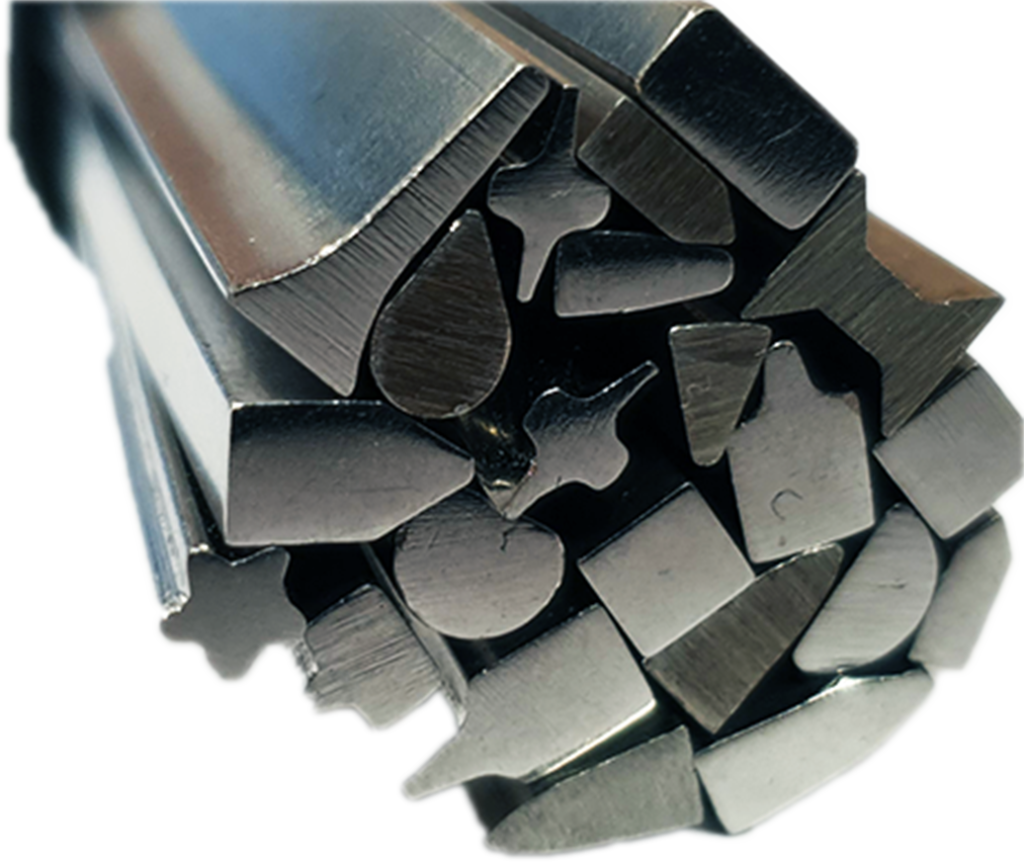

Shaped Wire Bundle

We have a range of profiles available, including:

Standard Profiles
Our standard profile wire is always burr free, and net (or near net) in shape with consistent physical properties throughout the entire cross-section. This guarantees a high quality product with dependable performance.

Standard profiles include wedges, triangles, flats, and squares in addition to traditional round wire. Whether you need wedge wire for filtration screens or half-round wire for pins and clips, we have a profile that can be used or adapted to meet your needs. Our skilled and knowledgeable engineers are always available to help you select the ideal wire for your specific application or product.

Custom Profiles
In addition to standard forms, we also have the capacity to produce custom profiled wire. Custom profiled wire is available in a broad range of shapes, sizes, and alloys, and it is always manufactured to exacting cross-sectional dimensions.

If you are looking for a profile beyond our standard selection, do not hesitate to contact us about a custom solution. From hardware and springs to architectural grates and fencing, custom profiled wire has virtually limitless applications and functions.



Standard Profiles

Square-Profile
Triangle-Wire
Wedge-profiled-wire
Rectangle-Profile-Wire
Flat-wire
Profiles-21
Tear-drop-profile
D-profile
Profiles-28
Trapezoid-wire
Chmfer-rectangle
Round-wire
Profiles-17
Oval-Wire-1
half-round-wire
Arc-wire

Our standard profile wire is always burr free, and net (or near net) in shape with consistent physical properties throughout the entire cross-section. This guarantees a high quality product with dependable performance. Standard profiles include wedges, triangles, flats, and squares in addition to traditional round wire.

Whether you need wedge wire for filtration screens or half-round wire for pins and clips, we have a profile that can be used or adapted to meet your needs. Our skilled and knowledgeable engineers are always available to help you select the ideal wire for your specific application or product.

Custom Profiles

channel-profile
L-profiled-wire
Profiles-36
Helical-profile
T-profiled-wire
Profiles-22
parallelogram
I-beam-profile-2
I-beam-profile
Twin-round-wire
Custom-Profile
Profiles-23
Interlock-profile
Profiles-29

In addition to standard forms, we also have the capacity to produce custom profiled wire. Custom profiled wire is available in a broad range of shapes, sizes, and alloys, and it is always manufactured to exacting cross-sectional dimensions. If you are looking for a profile beyond our standard selection, do not hesitate to contact us about a custom solution. From hardware and springs to architectural grates and fencing, custom profiled wire has virtually limitless applications and functions.

Edge Capabilities

profile wire edge capabilities

Flat, round, and square profiled wire is available with a variety of different edge configurations. These include round, square, natural rolled, or full rounded edges. Whether you need flat wire with a very minimal corner radius, or a full rounded wire with smooth corners and edges, we have the capability to manufacture the ideal product for your unique needs and requirements.

To learn more about the many uses for custom profiled wire, visit our applications page.

Alloys

Shaped Wire Bundle

We have a range of alloys available, including:

Stainless Alloys
302S, 302HQ, 304, 304L, 304VM, 305, 309, 310, 316, 316L, 316LVM, 316Ti, 317, 317L, 321, 347, 409, 409CB, 410, 420, 416, 420, 430, 431, 434, 439, 440C, 446, 17-7 PH (631), A286, 904L, Duplex 2205, Nitronic® 32, Nitronic® 50, Nitronic® 60

Nickel Alloys
Monel® 400, Monel® K500, Inconel® 600, Inconel® 601, Inconel® 625, Inconel® 718, Incoloy® 800, Incoloy® 825, Nickel 200, Nickel 201, Nickel 205, Nickel 211, Alloy 20 (20Cb3), C276, 330, 35-19Cb, Invar36

Specialty Alloys
X750, Hastelloy X®, L605, MP35N®

More available on request, including brass & copper.



Industries

rigging | shaped wire

Shaped wire can be used in a vast range of industries, including:

• Architecture

• Construction

• Food Industry

• Marine

• Medical

• Mining

• Nuclear

Oil and Gas

• Petrochemical

• Power Generation

• Spring Industry

Applications

oil and gas | shaped wire

As shaped wire is used in a range of applications:

• Belt Wire

• Chemical Filtration Screens

• Clips / Pins / Cotter Pins

• Decorative Mesh

• Fixings

• Furnace Belts

• General / Specialist Engineering

• Mining Screens

• Oil & Gas Filtration Screens

• Spacer Bars

• Springs

• Water Filtration Screens

Packaging

warehouse | products

CWI has numerous options for packaging your shaped wire products:

• Coils: 0.50 kgs – 1200 kgs (1.1 lbs – 2650 lbs)

• Spools: 0.50 kgs – 1200 kgs (1.1 lbs – 2650 lbs)

• Carriers / Formers: upto 1000 kgs (2205 lbs)

• Cut Lengths: 50 mm – 8000 mm (2″ – 315″)

Submit a Quote for our Shaped Wire in Duplex Steel | Nickel | Hastelloy | & More Available Alloys Below!
