MP35N® Overview
MP35N® is a multi-phase, nickel-cobalt based alloy that has a unique combination of ultrahigh tensile strength, good
toughness and excellent corrosion resistance. It maintains its toughness, ductility, and corrosion resistance in a range of environments from cryogenic temperatures up to 850°F (454°C) and is virtually immune to crevice and stress corrosion. MP35N® is highly resistant to sulfide stress corrosion cracking and provides excellent performance in the most demanding sour well environments.
MP35N® Nominal Composition
| C | Mn | P | S | Si | Cr | Ni | mois | Ti | Fe | Co | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 19.0 | 33,0 | 9.0 | ||||||||
| Max | 0,025 | 0,15 | 0,015 | 0,01 | 0,15 | 21.0 | 37,0 | 10.5 | 1.0 | 1.0 | solde |
Applications
Due to Alloy MP35N®’s high combination of strength, high modulus values, and good corrosion resistance, Alloy MP35N® is used in:
- Équipement médical
- Produits dentaires
- Barres de torsion
- Aéronautique et Défense
- Attaches
- Moteurs
- Gaz de pétrole
- Boîtiers sous pression
- Scellés
Physical Properties
| At 70°F | At 20°C | |
|---|---|---|
| Density | 0.304 lb/in³ | 8.42 g/cm³ |
| Modulus of Elasticity (E) | 33.8 x 10³ ksi | 233 GPa |
| Modulus of Rigidity (G) | 12.1 x 10³ ksi | 83.4 GPa |
| Coefficient of Expansion | 8.2 microinches/in.-°F (70-600°F) | 14.8 x μm/m°C (20-300°C) |
| Electrical Resistivity | 40.6 μ ohm.in | 103 μ ohm.cm |
| Thermal Conductivity | 78 Btu-in./ft.²hr.-°F | 11.2 W/m-K |

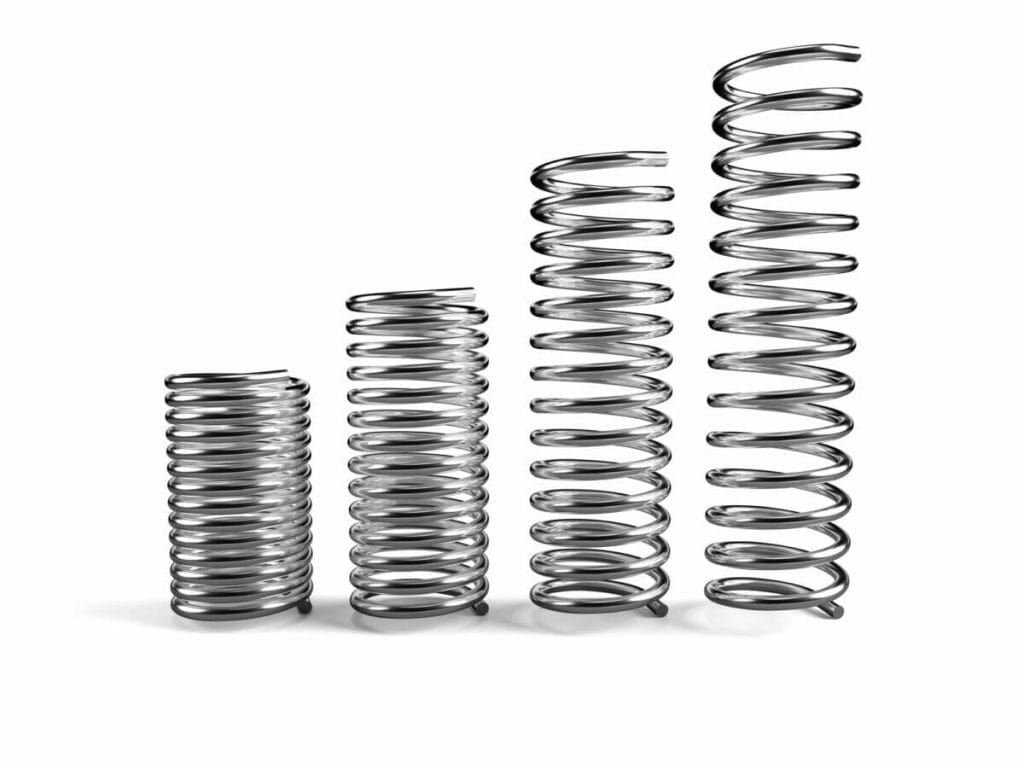

Typical Mechanical Properties - Spring Applications
| Condition | Heat Treatment | Tensile Strength | Suggested Operating Conditions |
|---|---|---|---|
| Solution Heat Treated | 1900 – 1925°F (1038–1052°C) for 4 to 8 hours | 115 – 140 ksi (793 – 965 MPa) |
-300°F to 800°F (-184°C to 427°C) |
| Spring Temper | 220 – 280 ksi (1517 – 1931 MPa) |
-300°F to 800°F (-184°C to 427°C) |
|
| Spring Temper + Aged | After spring coiling Age: 1200°F (649°C) minimum for 4 hours |
240 – 300 ksi (1655 – 2068 MPa) |
-300°F to 800°F (-184°C to 427°C) |
Normes de l'industrie
L'utilisation commerciale de l'alliage est régie par des normes industrielles telles que : AMS 5844, 5845 (capable), ASTM F562, NACE MR0175 (ISO 15156-3), NACE MR0103 (ISO 17945)
L'utilisation aérospatiale est fournie via l'AMS 5678G qui contrôle davantage le matériau avec des tests de qualification supplémentaires sur la microstructure du fil étiré final.
Available Specifications
| Wire & Bar | AMS 5844, 5845 (capable), ASTM F562, NACE MR0175 (ISO 15156-3), NACE MR0103 (ISO 17945) |
Microstructual Aspects
MP35N® has a face centered cubic (FCC) microstructure in the annealed condition. This is like other nickel and cobalt-based alloys. The primary strengthening mechanism is the partial transformation of the FCC structure to a hexagonal close-packed (HCP) structure. The FCC phase is stable above 1200°F, whereas the HCP structure is stable below 800°F.
However, the transformation from FCC to HCP cannot occur by temperature alone and requires mechanical deformation. Age hardening without mechanically deforming the materials to form the HCP structure has little effect because the cobalt-molybdenum phase forms at the interfaces between HCP platelets and the FCC matrix. Yield strengths greater than 260 psi (1793 MPa) are possible in the high-strength condition.
MP35N® Alloy Spotlight Video
Options de conditionnement
- Bobine
- Bobines
- Barres
- Emballage personnalisé disponible
